CVD Synthetic Diamond
Single crystal・polycrystal・nanocrystal, film, disk, thin film
CVD Synthetic Diamond

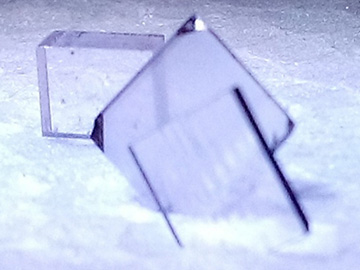

Single crystal- Size：3×3～5×5mm
- Thickness：0.5～2.5mm
- Grade: Electronic, Optical
- Surface: 1 side polishing, surface（100）
- Processing: Laser cut
Diamond dome tweeters, watch components, MEMS radiation and other sensors: ionizing radiation detectors/dosimeters, fluorescent beam monitors, gas sensors Electrochemistry: electrodes, electrochemical detectors, biochemical sensors
| Single crystal |
Size：3×3～5×5mm Thickness：0.5～2.5mm Grade: Electronic, Optical Surface: 1 side polishing, surface（100） Processing: Laser cut |
 |
|---|---|---|

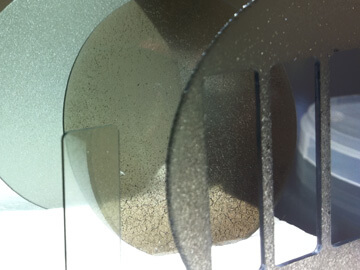

| Diamond window for CO2 Laser with AR coat | Size：30×9mm Thickness：0.5mm Surface: Polished < 5nm Flatness：< 3 Fringe parallelism：< 25μｍ TWF：< 4 Fringe Coating: AR coat Transmittance > 98.6% @10.6μm Grade: Optical |
 |

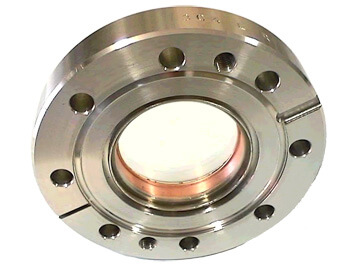

| Optical window material for vacuum flange Window material for High power RF |
Window material for vacuum flange (metallization) Flatness：< 3 fringe TWF：< 4 fringe Surface: Polished < 10nm Grade: Optical Parallelism：< 25μｍ For high High RF (crytron, gyrotron, etc.) |
 |

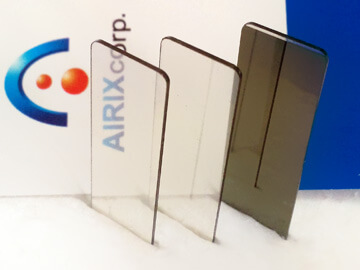

| Temperature management: Heat sink | Other side: Wrapping Ra < 250nm Thermal conductivity：1000～1800 W/m･K Surface: Polished Ra < 50nm Grade: Thermal Laser scribing：Available |
 |

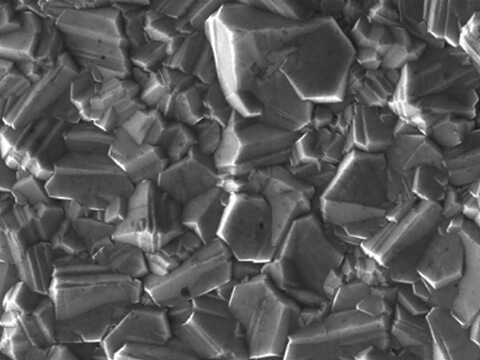

SEM image of CVD Diamond

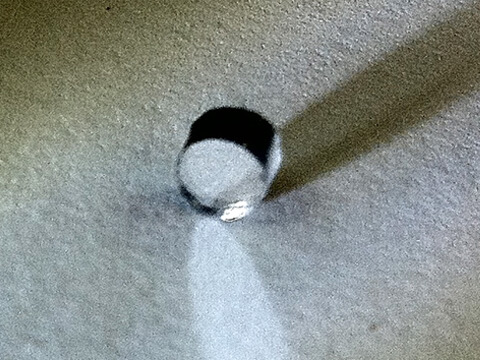

CVD Diamond Single crystal

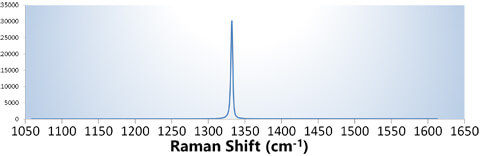

CVD Diamond Raman Spectrum
| Size | 〜75mm diameter |
|---|---|
| Thickness | 0.01mm〜2mm |
| Material | CVD diamond |
| Grade | Electronic, optical, thermal, mechanical |
| Type | Single crystal, polycrystal, nanocrystal, boron (B) doping |
| Surface | No processing, lapping, polishing < 5nm |
| Shape | Laser cut |
| Optics | UV-infrared window material, high-power laser window material, ATR unit, X-ray window |
|---|---|
| Heat dissipation | Heat spreader, laser submount, X-ray target |
| Machine | Wear resistant parts such as dresser, bite, knife, knife and gauge |
| Electrochemistry | Electrodes, electrochemical detectors, biochemical sensors |
| Sensor | Ionizing radiation detector/dosimeter, fluorescent beam monitor, gas sensor |
| Other | Diamond Dome Tweeter, Watch Components, MEMS |
