ST-Voltra series　Portable SO2 volcanic gas monitor



  • Suitable for field observation of volcanic SO2 gas concentration
  • Waterproof・dustproof case compatible for remote monitoring
  • Provide electric scan mirror
  • Remote data communication function
  • Battery can be used by DC external power supply
  • GPS data link support

This is a portable SO2 gas emission amount observation system developed for field observation of volcanic SO2 gas. Higher precision, higher functionality, smaller size and lighter weight than conventional products. This device consists of a spectroscope with an ultraviolet telescope, a mirror scan unit, and a laptop computer for data processing. Volcanic gas near the fumaroles can be remotely measured in a mobile and safe manner. In addition, if a mirror scan unit is attached to the condensing system, the SO2 gas column concentration can be measured in full. A USB connection is used from the spectroscopic unit to the data processing laptop computer, and the main unit is equipped with a grating, CCD spectroscopic camera, ultraviolet telescope, and USB connector. Equipped with continuous data collection/quantification software for SO2 gas as standard, and GPS function as an option.

Scanning optical system by ultraviolet telescope 33.3mrad x 1.7mrad Ultraviolet telescope
Electric scan unit
Spectral detector FLAME-S
2048 element CCD compact spectrometer
laptop　Windows　O/S
Data processing software SO2-Quant-Cont -Soft
SO2 gas continuous data collection/quantitative analysis software

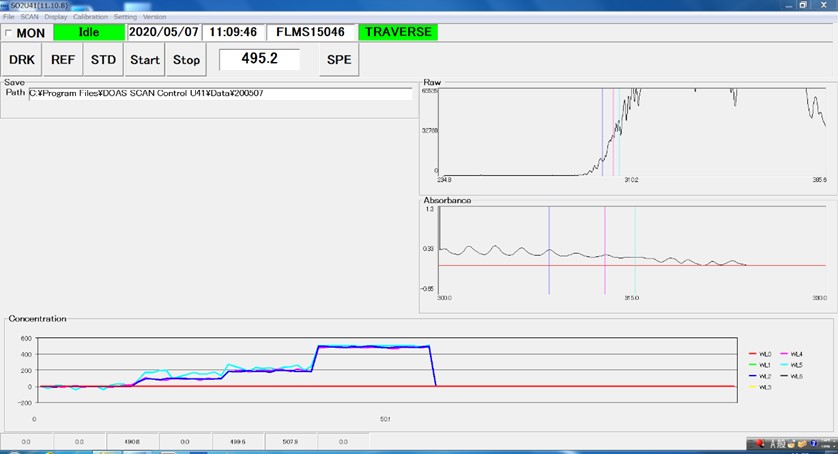

画面イメージ
  • SO2 gas concentration real-time monitor function
  • Compatible with electric scan units
  • Supports GPS data link (optional)
Specification of scanning optical system with ultraviolet telescope
UV condenser lens 15mm diameter　
Viewing angle 33.3mrad x 1.7mrad
Visible light cut filter U330　25mm diameter
Scan mirror Aluminum coat on BK7 substrate
Scan motor DD micro step motor
Scan angle 0° to 360° (max)
Scan speed 6,30,60, 90,120°/min

Spectral detector FLAME-S specifications
Focal length/Grating f/4,　23mm, 2400g/UV_Holo, Measurement range 245-385nm
CCD element 2048 element linear CCD array, 14 x 200μm/element
Wavelength resolution 1.1nm （100 μm slit）
ADC resolution 16bit
Data processing unit laptop　Windows O/S

Optional parts specifications
Tripod, DC6V battery, ACDC converter (with charging function)

GPS data link unit　GPS-Link
Recording and display of measurement time, longitude, latitude (world geodetic system), movement distance, speed

Standard SO2 gas cell：　約100、200、500、1000ppm・m
